Definition: Some centres like to personalise the receipt handed in to the customers with their official logo. This can also be applied to the financial reports and score printouts. These images/logos have to be saved as .bmp and must be added to a specific folder of the QDesk.

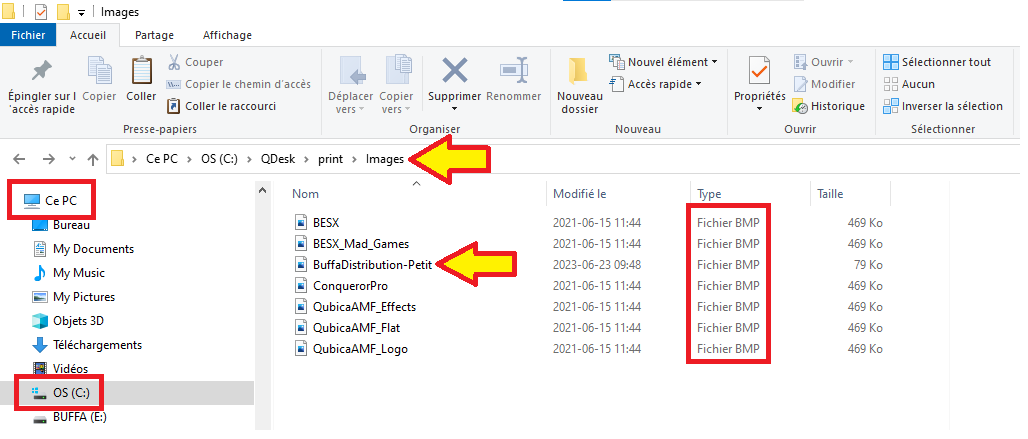

Where to store the .bmp image to be utilised on receipts or printouts:
File Explorer > This PC > OS (C:) > QDesk > Print > Images
Where to add your logo to the receipts or printouts:

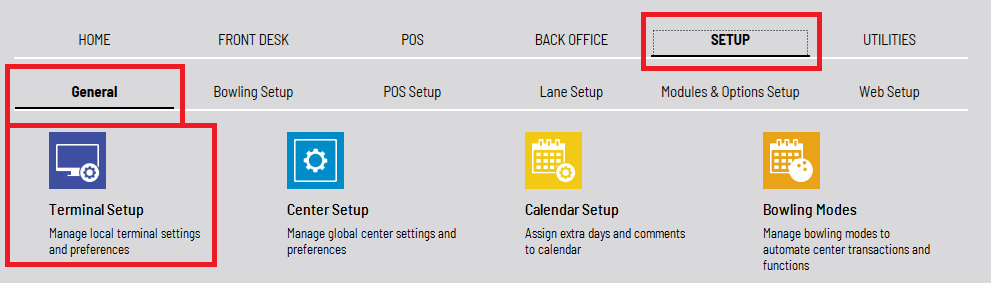

1) Go to Setup > General > Terminal Setup

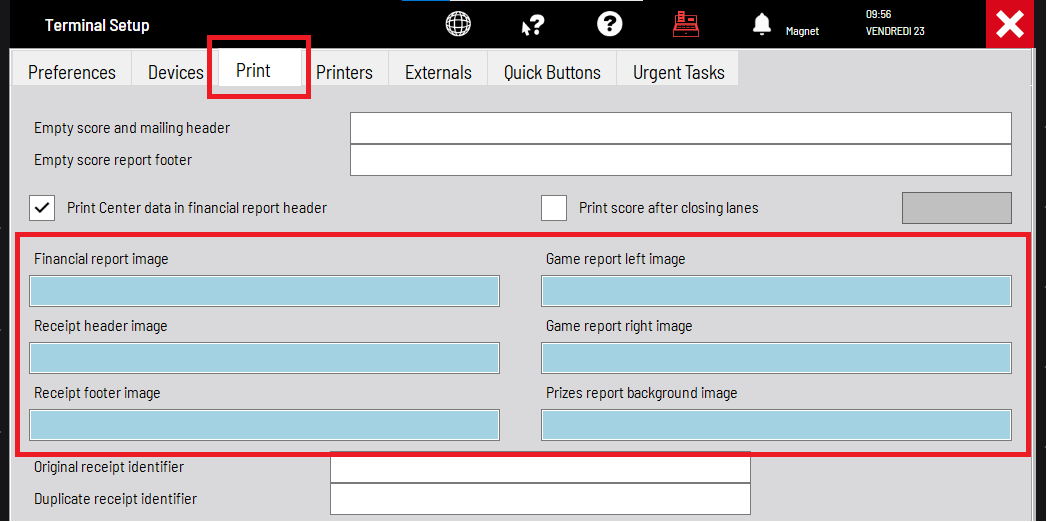

2) Select Print (3rd tab).
3) Your logo can be added here: financial report, game report (left and right), receipt header and footer and prize report background. The latest report is not that common so it will be skipped.

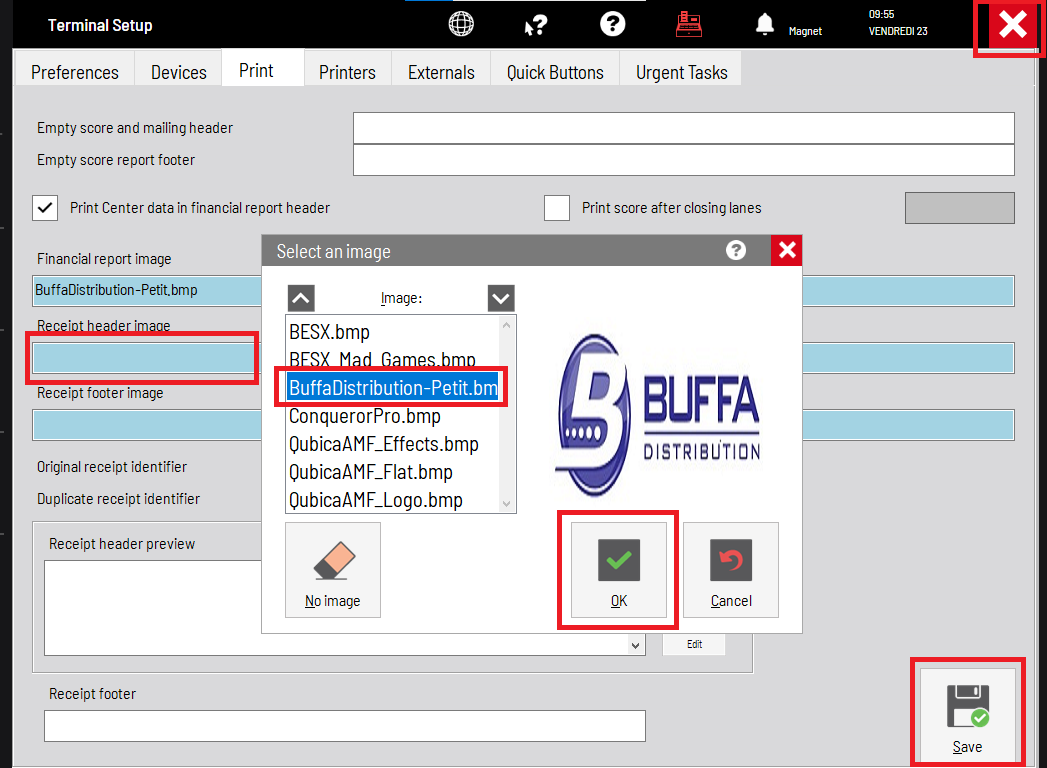

4) Click the blue bar to access the images stored into the Images folder of the QDesk. Select the image/logo and click OK.
5) Click Save at the bottom right and the X to exit out from the Terminal Setup page.
Notes:
1) Because this is done through the Terminal Setup (not the Center Setup), this has to be done on every terminal.

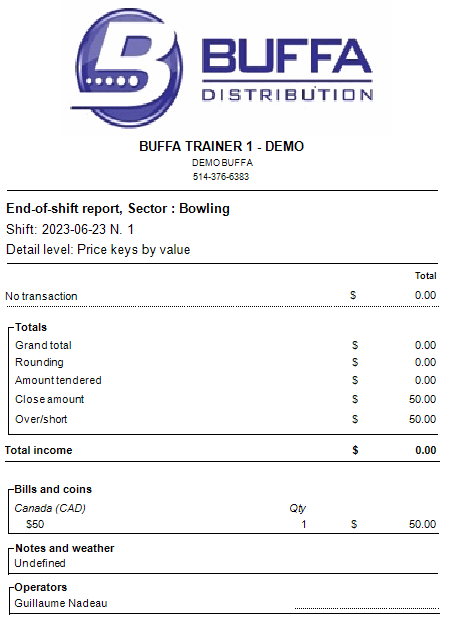

2) Look of the financial report:

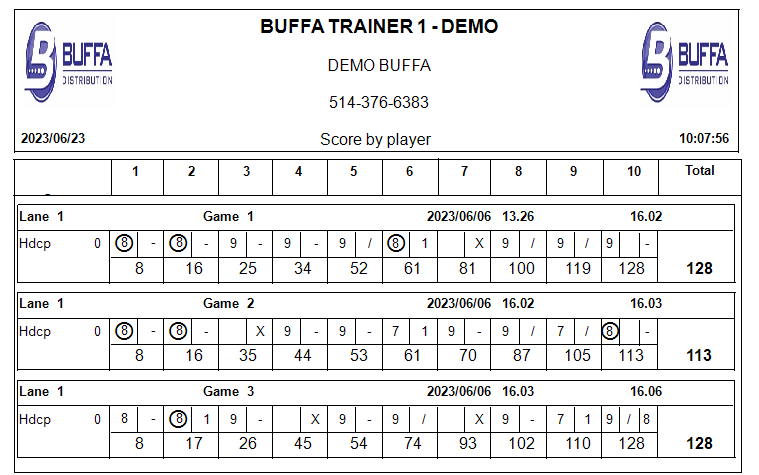

3) Look of the game printout:
4) Look of the receipt: To be added.
